| X42-390 | X42-430 | X42-460 | X42-560 | X42-620 | |
| Maximum Reach (incl. Normal Breaker) | 6.0 | 6.5 | 6.8 | 7.7 | 8.4 |
| Horizontal Reach Max. (Breaker Vertical) | 3.9 | 4.3 | 4.6 | 5.6 | 6.2 |
| Vertical Reach Max. (incl. Nominal Breaker) | 4.3 | 4.8 | 5.1 | 5.5 | 6.3 |
| Recommended Breaker Weight (kg) | – | – | 400-1000 | – | – |
| Operating Mass (excl. Breaker, PowerPack & Control Console) | 2500 | 2550 | 2600 | 2650 | 2750 |

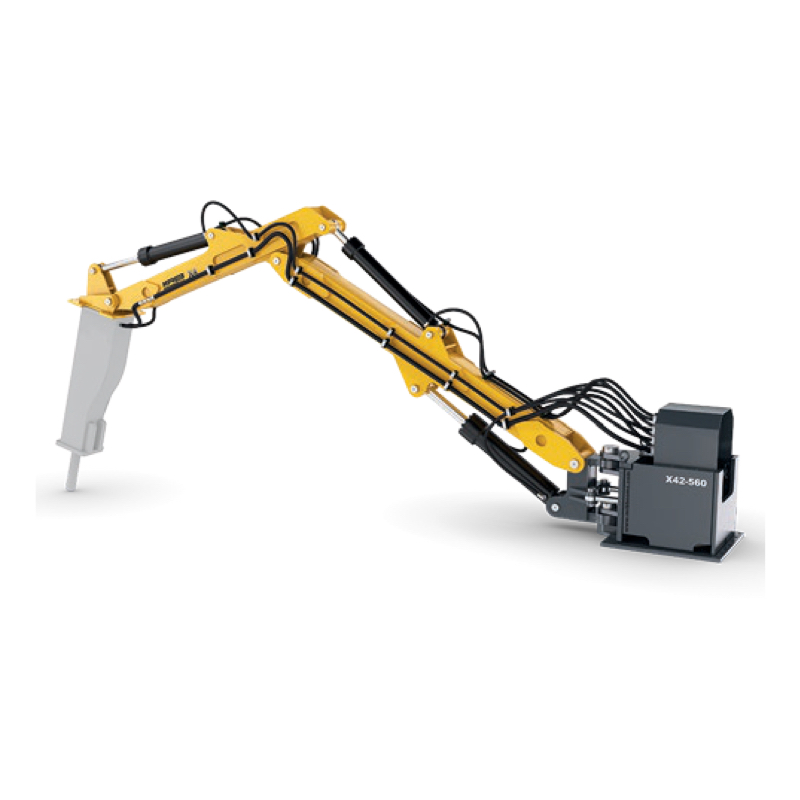

Light & Medium Duty Booms for Jaw Crushers
The X4-Line is designed for jaw crusher applications. Value adding features have been included to optimize productivity and Total Cost of Ownership. There are five different booms available to suit light duty and two booms for medium duty jaw crusher applications. The features and benefits are highlighted in the X4-Line brochure and the technical data sheet, as well as in the accessories brochure.
