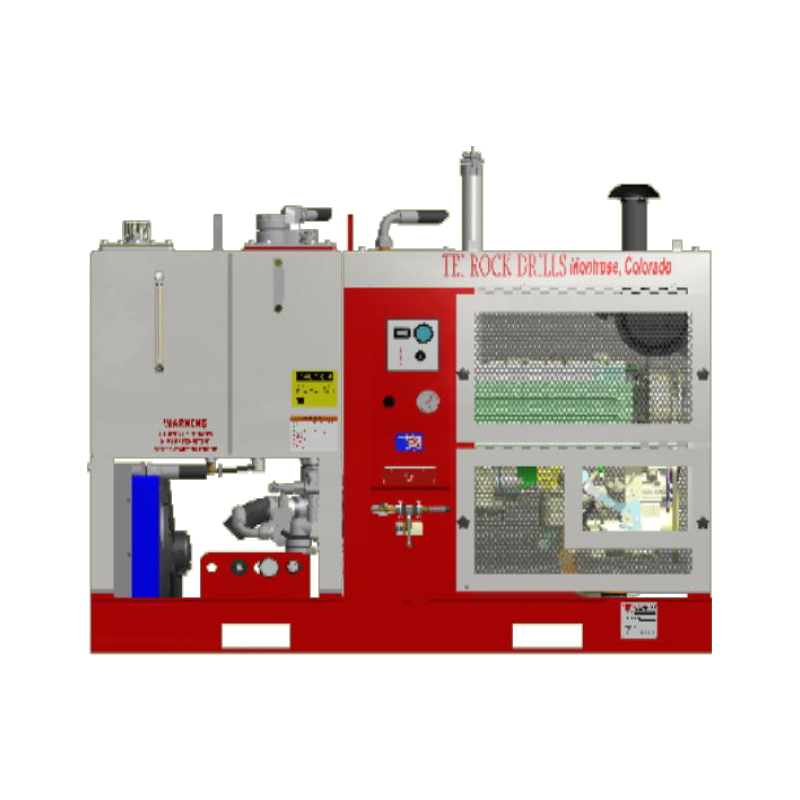

Our hydraulic power units supply reliable hydraulic power to the TEI portable drills, drifters, and rotary heads. Each power unit has a central pick point, fork pockets for the lift, and the fuel capacity to remain in use for 8 to 10 hours.
- Solid Steel Frame
- Center Pick Point
- Fork Pockets on Side
- Quality Components
Specifications
| DM360 | |
| Flow (Ibm) | 132.5 |
| Pressure (bar) | 155 |
| Power (kW) | 57.6 |
| Engine | TIER 4i |
| Turbo | Yes |
| Fuel | Diesel |
| Fuel Capacity (l) | 155 |
| Fuel Consumption (l/hr) | 15.5 |
| Runtime (hrs) | 10 |
| Hydraulic Pump | Variable Displacement, Load Sensing Pump |
| Cooling Capacity (kW) | 12.7 |
| Hydraulic Tank (l) | 121 |
| Hydraulic Filter (microns) | 10 |
| Voltage (vdc) | 12 |
| Hydraulic Oil | ISO 32 – 68 |
| Dry Weight (kg) | 763 |
| Wet Weight (kg) | 999 |
